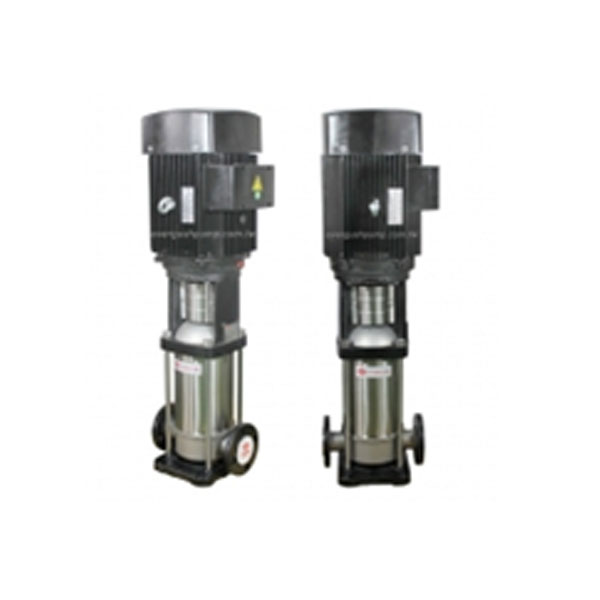

ECDL Vertical Multi-stage Centrifugal Pumps

Vertical Multistage Pump

Operating Conditions

Ambient Temperature

+400C

Liquid Temperature

-150C ~ +700C

Hot water range

+700C ~ +1200C

Max. Working pressure

25kg/cm2

Remarks

For clean non-flammable and non-explosive liquid, without solid, filamentary and abrasive matter

Specifications

Power(Output)

1HP~60HP (0.75kW~45kW)

Motor Protection

IP55

Insulation

F

Motor range

2P;50~60Hz

Voltage

Three phase 220V/380V/415V/440V
Single phase 220~240V

Max.Head

310m

Max.Capacity

110m3/hr

Remarks

Totally enclosed fan cooled 2 pole IEC standard motor.
If it is used for brewery, we suggest replacing standard motor to explosion proof motor
