Micro Irrigation Systems

Low Cost Micro irrigation

Instant solution at lowest price

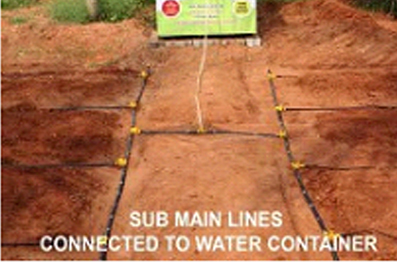

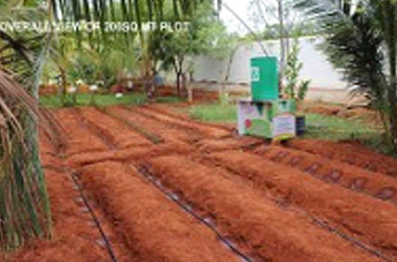

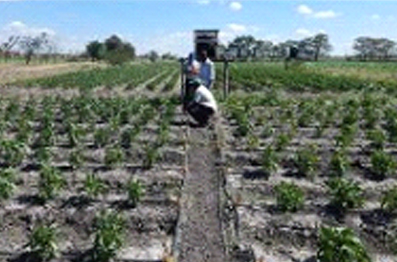

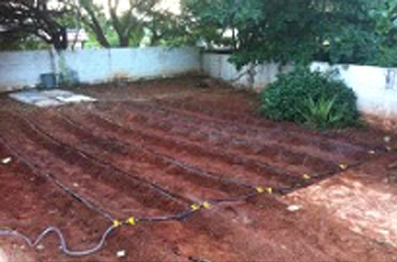

InstarDrip kit

Drip Kit is developed for small farmers having no electricity and no independent water source. It is affordable drip irrigation system for poor farmers having small land holdings. It removes the entry barrier for small farmers to adopt drip irrigation system.

Features of Drip Kit

Operates on gravity system and requires no electricity
Operates under very low pressure conditions
Very simple and easy to install
Water flow to each drip line can be controlled with the T tap valve
Portable and can be easily shifted
Labor costs are reduced drastically due to simplicity of the drip system
Drip Kit system requires approximately 60% to 70% less water when compared with the traditional surface irrigation
Modular design and hence can easily be expanded to bigger areas

Application

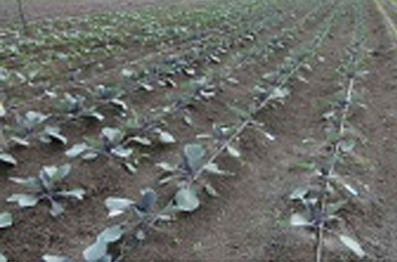

This kit is mainly suitable for cultivation of vegetable crops and other closely spaced crops.

Specifications

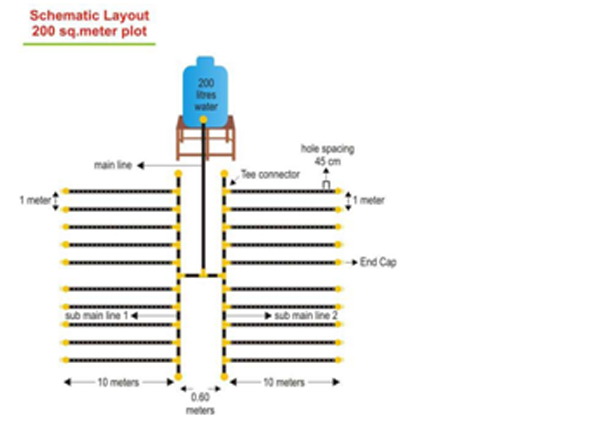

Drip Kit is available in 3 models	50 sq.meter, 100 sq.meter, 200 sq.meter.
Drip Tape	Thickness – 250 micron ( 10 mil ) Diameter – 16 mm Drip hole spacing – 45 cm Discharge – Approx. 3 – 6 liter per hour (Depends upon tank height capacity)
Lateral length is 10 meter	Space between two laterals is 1 meter
T connectors are 16 mm quick connectors with lock and valve.
Number of plants	50 Sq. Meter – 110 plants at a spacing of 45 cm x 1 meter 100 Sq. meter – 220 plants at a spacing of 45 cm x 1 meter 200 Sq. meter – 440 plants at a spacing of 45 cm x 1 meter

Other Accessories

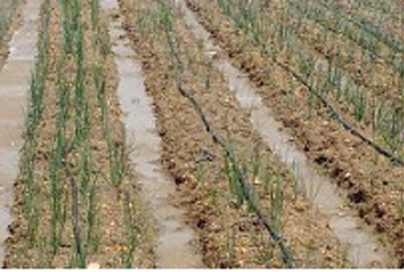

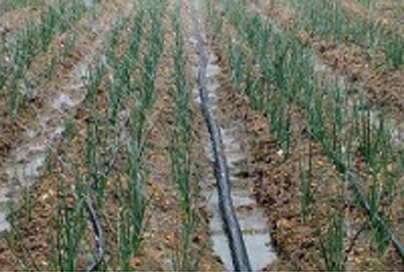

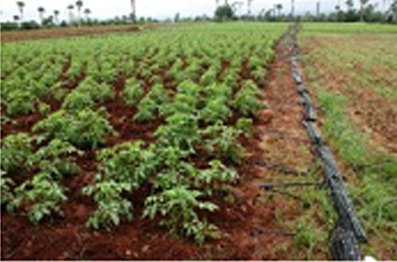

Drip Tape

Drip Tape is very simple and affordable by small farmers. Water flows like a jet instead of drop by drop. There is no dripper in the tube. Instead, simple holes are made to drip water. Hence clogging problem will never come. No blockage of simple holes and suitable for above ground installation.

Specifications of Drip Tape

Water flows like a jet instead of drop by drop
Drip lateral tape is a seamless tube
Manufactured from special grade virgin poly ethylene mixture
Wall thickness – 250 micron i.e. 10 mil
Outer Diameter – 14.6 mm All 16 mm lateral fittings can be used.
Flexible tape makes it convenient for coiling and de-coiling
Recommended for closely spaced crops
Drip holes are formed in the tape with spacing of 45 cm, 60 cm, 75 cm, 90 cm etc.
Wall thickness – 250 micron / 200 micron / 150 micron / 125 micron (10 mil / 8 mil / 6 mil / 5 mil).

Drip tape size – 16 mm ( outer diameter 14.6 mm), 20 mm ( outer diameter 16.6 mm)
Drip hole spacing – 45 cm, 60 cm, 75 cm, 90 cm
Custom order of any thickness, any size and any hole spacing is possible.

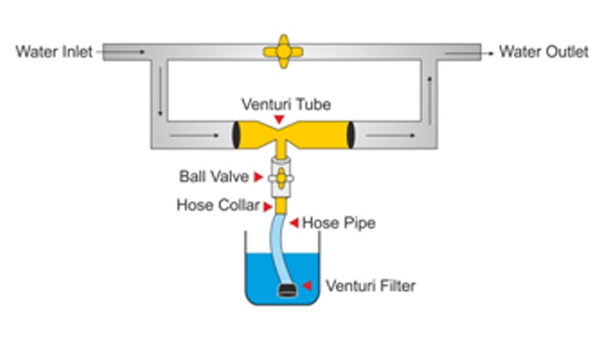

Venturi

Venturi – fertilizer injectors are the most efficient and economical way to feed liquid nutrients to the roots of the plants through drip irrigation system. Fertigation is being done simultaneously along with irrigation. Plants absorb fertilizer more efficiently when it is in liquid form.

Easy to install
Economical and most efficient
Ensures regulated fertilizer injection
Manufactured with virgin plastic co-polymer material for durability
Non return valve at the suction end avoids reverse flow
High quality material resistance to most of the chemical used in agriculture
Injector delivers precise dosing, proportional to the system’s flow rate based on water volume

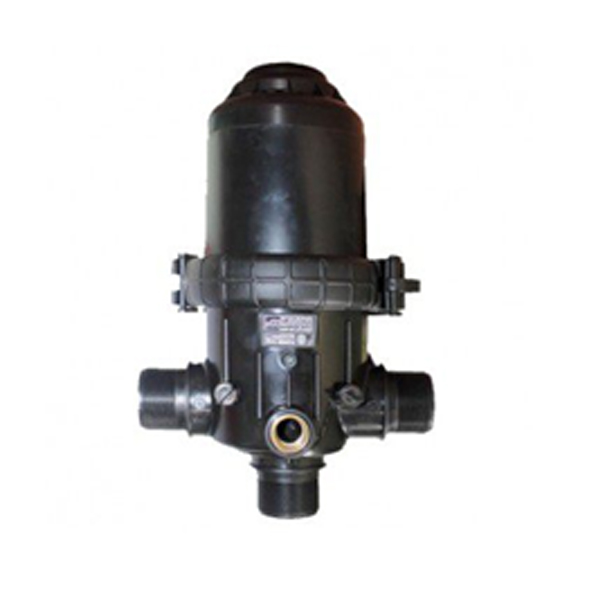

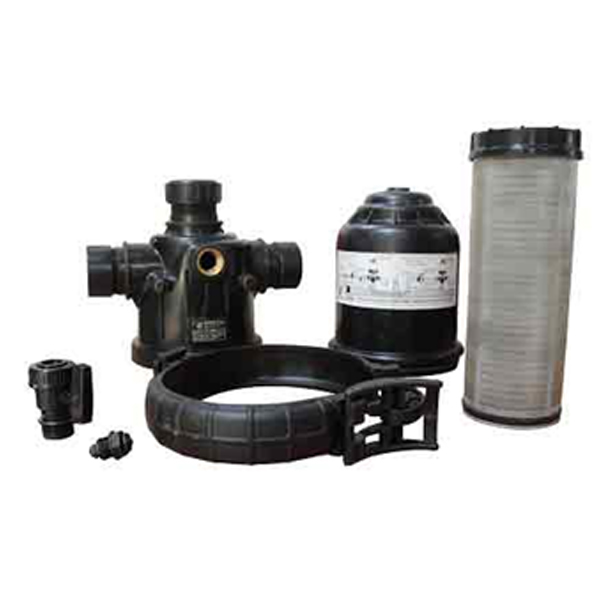

Filters

Filters are meant to remove dust and other fine particles in the water before irrigating through drip tubes.

Specifications of Screen Filters &Disk Filters

Ensures high particle retention and allows longer interval between cleaning
Coarse particles retained on element surface and fine particles retained in grooves
Installation is possible in any position, both vertical and horizontal, inlet – outlet connections possible in both inline and angular orientation
Impurities retained on element surface can be flushed out with drain valve
Corrosion-proof and durable polypropylene body construction
All plastic and metal parts are resistant to common agricultural chemicals, fertilizers and flushing agents used with the system
Stacked disk structure provides, three dimensional filtration for disk filter

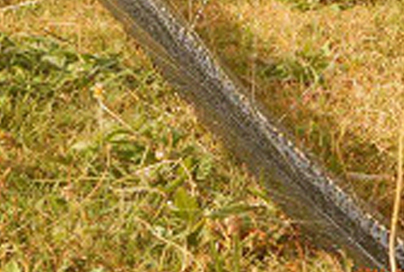

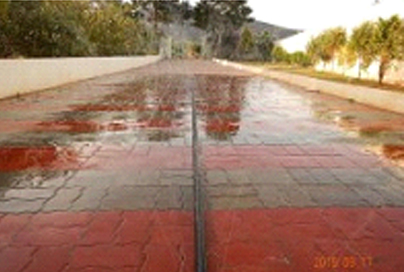

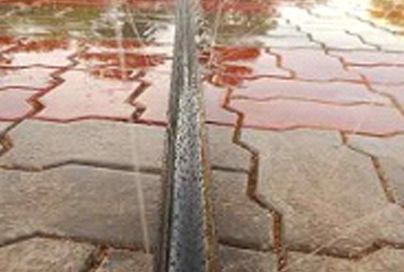

Rain hose

It is a replacement for Sprinkler Irrigation System. Low cost drip irrigation solution removes the technology and cost entry barrier for poor farmers.
